(HI6542-02) pH/ORP/ISE + Optical DO Multiparameter Modular Benchtop Meter

Description

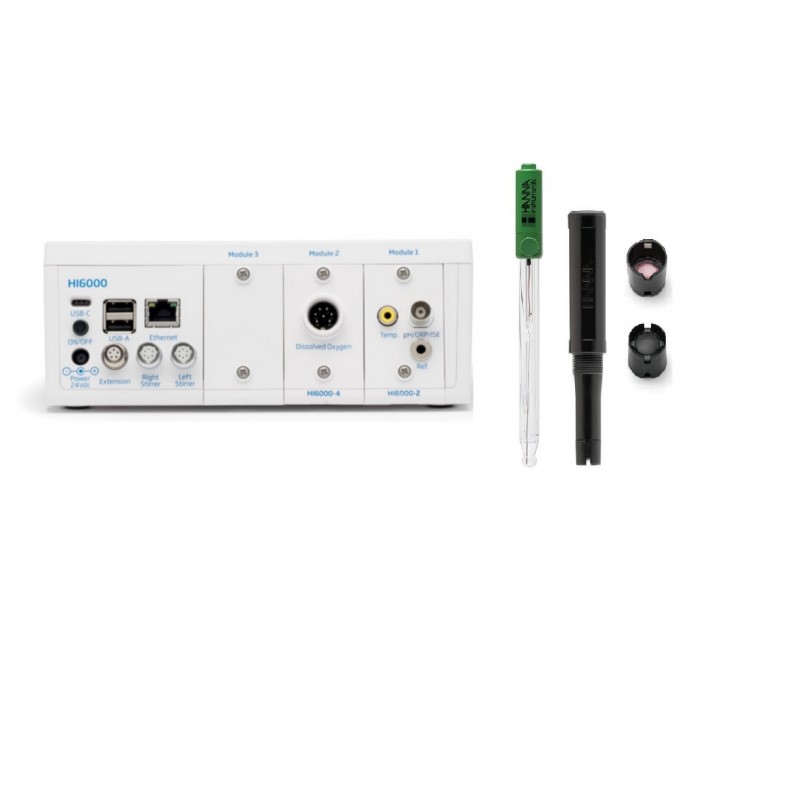

The HI6542 Kit for the HI-6000 includes the HI-6000 modular multiparameter meter system, a HI6000-2 pH/ISE module and a HI6000-4 dissolved oxygen module. Also included is the HI1131B pH electrode, HI7662-TW temperature probe and HI7641133 optical DO probe with a HI764113-1 Smart Cap. This kit includes everything needed to accurately measure DO and pH out-of-the-box, including a calibration solution starter set for both pH and DO.

HI6000 is a fully flexible measurement platform that can be customised according to the user’s application needs. Designed and developed using the latest generation technologies, it gives complete control over measurements.

This kit is compatible with a wide range of Hanna Instruments electrodes for ISE measurement. For advice on the best electrodes for your needs speak to our in-house specialists directly.

Six different pre-built kits are available for the HI6000 multimeter, including the modules and electrodes required for laboratory-grade measurement:

HI6222 pH/ORP/ISE Kit
HI6522 pH/ORP/ISE + EC Kit
HI6542 pH/ORP/ISE + Optical DO Kit
HI6542/P pH/ORP/ISE + Polarographic DO Kit
HI6553 pH/ORP/ISE + EC + Optical DO Kit
HI6553/P pH/ORP/ISE + EC + Polarographic DO Kit

Specifications

HI6542-02	pH/ORP/ISE + Optical (opdo) DO Kit
Range	-2.0 to 20.0 pH; -2.00 to 20.00 pH; -2.000 to 20.000 pH
Resolution	0.1 pH; 0.01 pH; 0.001 pH
Accuracy	±0.1 pH; ±0.01 pH; ±0.002 pH (±1 last significant digit)
Temperature Compensation	Automatic or manual
mV
Range	-2000.0 mV to 2000.0 mV
Resolution	1 mV; 0.1 mV
Accuracy	±0.2 mV ±1 last significant digit
ISE
Range	1 x 10^-6 to 9.99 x 10¹⁰ concentration
Resolution	1; 0.1; 0.01; 0.001 concentration
Accuracy	±0.5% (monovalent ions); ±1% (divalent ions)
Calibration	Automatic, up to five-point calibration, seven fixed standard solutions available for each measurement unit, and five user defined standards
Temperature
Range	-20.0 to 120.0 °C; -4.0 to 248.0 °F; 253.0 to 393.0 K
Resolution	0.1 °C / 0.1 °F / 0.1 K
Accuracy	±0.2 °C / ±0.4 °F / ±0.2 K
Relative mV offset range	±2000.0 mV
pH Calibration
Calibration points	Up to 5
Type	Automatic; Semiautomatic; Manual
Standard buffers	Hanna and NIST – pH 1.68, 3.00, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45
Custom buffers	Up to 5
Custom group	Up to 5
1st calibration point	Offset or Points (user setting)
Temperature User Calibration	Single point, adjustable; Isopotential point: -2.000 to 20.000pH

Dissolved Oxygen
Range		0.00 to 90.00 mg/L (ppm) concentration; 0.0 to 600.0 % saturation
Resolution		0.01 mg/L (ppm); 0.1 % saturation
Accuracy		Refer to individual specifications for probe used
HI-7641133 DO Probe Specification
Probe Body Material		ABS
Smart Cap™ material		Polypropylene
Cable jacket material		PVC
Cable Length		1m
probe guard		Stainless steel
Temperature Measurement		Thermistor
Pressure		20m (29 PSI)
Probe Dimensions with guard		174 x 25mm
Response Time		45 seconds
probe ingress protection rating		IP68
Sensor type		Optical; luminescence quenching
HI-764833 Polarographic probe
Range		0.00 to 90.00 mg/L (ppm) concentration; 0.0 to 600.0 % saturation
Resolution		0.01 mg/L (ppm); 0.1 % saturation
Accuracy		±1.5 % of reading ±1, least significant digit
Barometric Pressure
Range		450 to 850 mmHg; 600 to 1133 mBar; 60 to 113.32 kPa; 17.72 to 33.46 inHg; 8.702 to 16.436 psi; 0.592 to 1.1184 atm
Resolution		1 mmHg; 0.1 mBar; 0.01 kPa; 0.01 inHg; 0.001 psi; 0.0001 atm
Accuracy		±3 mmHg within ±15 % from the calibration point ±3 mmHg ±1 least significant digit
Temperature
Range		−20.0 to 120.0 °C −4.0 to 248.0 °F 253.0 to 393.0 K
Resolution		0.1 °C; 0.1 °F; 0.1 K
Accuracy		Refer to specification of probe used
DO Calibration
Points		One or two points at 100.0% (8.26 mg/L) and 0.0% (0.00 mg/L) automatic. Manual using a value entered by the user in % saturation, mg/L or ppm.
Temperature User Calibration		1 point, configurable
Salinity Compensation		Manual; 0.00 to 45.00 PSU or ppt 0.0 to 130.0 %

Ordering Information

pH/ORP/ISE and opdo® kit: HI6542-01 (US power plug) and HI6542-02 (EU power plug) is supplied with HI6000 housing unit; HI6000-2 pH/ORP/ISE hardware module (installed); HI6000-4 DO hardware module (installed); HI1131B pH electrode; HI7662-TW temperature probe; HI7641133 optical DO probe; pH 4.01 buffer solution, 2 sachets; pH 7.01 buffer solution, 4 sachets; pH 10.01 buffer solution, 2 sachets; electrode cleaning solution, 2 sachets; pH & ORP electrode storage solution (25 mL); 3.5M KCl electrolyte solution (30 mL); capillary pipette, 1 piece; DO Smart Cap with O-ring, 1 pc. of each; calibration/storage vessel, 1 piece; lens cleaning wipe, 1 piece; syringe and sachet with silicone grease, 1 piece of each; electrode holder with base plate, screw, cable holder clip (requires mounting); 24 VDC power adapter; USB-C to USB-A cable; meter quick reference guide; hardware modules quick reference guides and quality certificates; Smart Cap, probes, and meter quality certificates.
