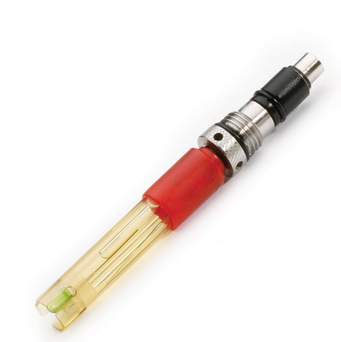

The HI7698194-1 is a replaceable pH/ORP sensor for use with Hanna’s family of multiparameter portable meters and probes. The sensor body is constructed of durable PEI material and contains a double ceramic junction design. The HI7698194-1 contains a glass pH sensing tip with a platinum ORP sensing pin. Each module is color coded for easy installation and integration with the probe.
The PEI (polyetherimide) electrode body is suitable for a wide range of applications and excels in field measurements due to its durability. The shielding around the spherical glass tip minimizes breakage due to accidental bumping or dropping of the electrode. The PEI plastic is a high-quality plastic that is chemically resistant to many harsh chemicals.
A double junction electrode has an internal compartment surrounding the reference wire. Silver ions are present in the electrolyte of the internal compartment, which houses the Ag/AgCl reference wire; the electrolyte outside this compartment is silver free. The double junction design means that virtually no silver from the electrode enters the sample. This design allows measurement in applications where silver ions in the sample are undesirable or silver precipitates on the junction are likely to form.
Sensors are color coded to match sensor ports on the probe for quick, field-replaceable, screw-type, connection and identification.
| Weight | 0.07 kg |
|---|---|
| Parameter | ORP, pH |
| SKU | HI7698194-1 |
| Name | Spare pH/ORP Sensor for HI769819X Probe – HI7698194-1 |
| Description | pH/ORP sensor |
| Measurement Range | 0.00 to 13.00 pH; ?600.0 pH mV; ?2000.0 mV (ORP) |
| Reference Cell Type | double |
| Junction Type/Flow Rate | ceramic |
| Type of Electrolyte | gel |
| Body Material | PEI |
| Temperature Operating Range | -5 to 55 ?C |
| Body Length/Overall Length | 118 mm |
| Outer Diameter | 15 mm |
