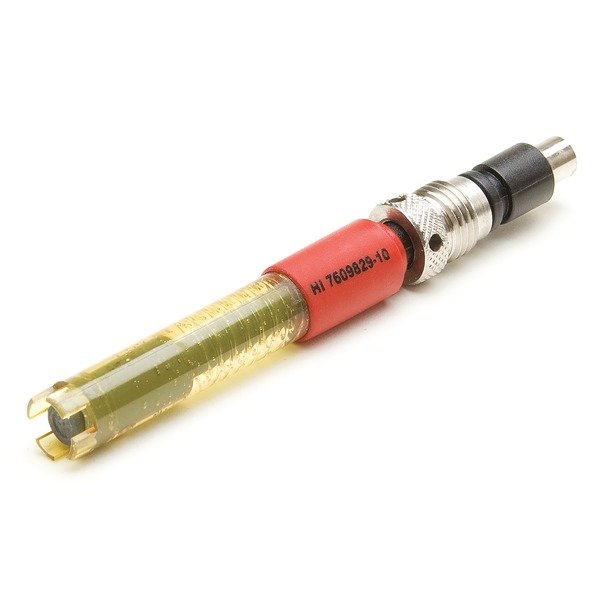

Ammonium Ion Selective Electrode for HI9829 Multiparameter Portable Meter - HI7609829-10

R14,630.00 Excl VAT

Availability on Request

The HI7609829-10 is a combination liquid membrane selective sensor used for the detection of free ammonium-nitrogen in freshwater samples. Its double junction design contains a Ag/AgCl, gel filled reference chamber. The HI7609829-10 utilizes a polymeric membrane constructed in a PVC head. This sensor is used in the pH sensor socket of the probe.

  • PEI Sensor Body
  • Polymer Membrane
  • Color Coded Sensor

Description

PEI Sensor Body

The PEI (polyetherimide) electrode body is suitable for a wide range of applications and excels in field measurements due to its durability. The shielding around the spherical glass tip minimizes breakage due to accidental bumping or dropping of the electrode. The PEI plastic is a high-quality plastic that is chemically resistant to many harsh chemicals.

Polymer Membrane

The sensor is built with a polymer membrane containing an ammonium ionophore specifically designed to select for ammonium ions.

Color Coded Sensor

Sensors are color coded to match sensor ports on the probe for quick, field-replaceable, screw-type, connection and identification.

Additional information

Weight 0.07 kg
Parameter

Ammonium

Specifications

SKU HI7609829-10
Name Ammonium Ion Selective Electrode for HI9829 Multiparameter Portable Meter – HI7609829-10
Description Ammonium ISE
Measurement Range 0.02 to 200.0 ppm as NH4 +-N
Reference Cell Type double
Type of Electrolyte gel
Body Material PEI
Tip / Shape Polymeric Liquid Membrane
Temperature Operating Range 0 to 40 ?C
Body Length/Overall Length 118 mm
Outer Diameter 15 mm
